0) Introduction

Support Vector Machines, or SVMs, are supervised learning algorithms used for classification and regression. In scikit-learn, the main classes are SVC and LinearSVC for classification, and SVR and LinearSVR for regression. The official scikit-learn guide also notes that SVMs are effective in high-dimensional spaces, can still work well when the number of features is larger than the number of samples, and use only a subset of the training points in the decision function, called support vectors.

1) What an SVM does

Imagine you have two classes of points, for example:

class 0: red points
class 1: blue points

An SVM tries to find a boundary that separates them. But it does not choose just any boundary. It chooses the one with the largest margin, meaning the widest possible gap between the classes.

That is the central idea:

decision boundary: the line, plane, or hypersurface separating classes
margin: the distance between the boundary and the nearest training points
support vectors: the points closest to the boundary; they “support” and define the classifier

In practice, this often gives good generalization on unseen data.

2) Why SVM is powerful

SVM is useful when:

the dataset is small or medium-sized
the classes are separable or almost separable
there are many features
you want a strong baseline model

Scikit-learn also warns that SVC is based on libsvm and that fit time scales at least quadratically with the number of samples, so it may become impractical beyond tens of thousands of samples. For larger datasets, the docs recommend considering LinearSVC or SGDClassifier, possibly with kernel approximation techniques.

3) Linear SVM intuition

Suppose your data has only 2 features:

feature 1 = exam score
feature 2 = hours studied

A linear SVM tries to draw a straight line that separates “pass” from “fail”.

If several lines can separate the classes, the SVM picks the one with the largest margin.

Hard margin vs soft margin

Hard margin

Used when the data is perfectly separable.

The model insists on zero classification error.

Soft margin

Used when the data is noisy.

The model allows some mistakes but still tries to maximize the margin.

This is controlled by the parameter C.

small C: wider margin, more tolerance for mistakes, stronger regularization
large C: fewer mistakes on training data, narrower margin, weaker regularization

4) Nonlinear SVM and the kernel trick

Real data is often not linearly separable.

Example:

points of class A are in the center
points of class B surround them in a circle

A straight line cannot separate them.

SVM solves this using kernels. A kernel lets the algorithm act as if it mapped data into a higher-dimensional space without explicitly computing that mapping. Scikit-learn’s SVC supports kernels such as linear, polynomial, RBF, and sigmoid.

Common kernels:

linear
poly
rbf (most popular nonlinear choice)
sigmoid

RBF kernel

The RBF kernel is often the default and a very strong general-purpose choice.

Important parameter:

gamma

Interpretation:

small gamma: smoother, broader influence of each point
large gamma: more localized influence, more complex boundary

So with RBF SVM, the two most important tuning parameters are usually:

C
gamma

5) SVM for regression

SVM is not only for classification.

For regression, scikit-learn provides SVR and LinearSVR. The regression version tries to fit a function while allowing an error tolerance band, controlled by epsilon, around the prediction. SVR uses libsvm and nonlinear kernels if desired, while LinearSVR is designed to scale better for larger datasets.

Main regression parameters:

C: regularization
epsilon: width of the no-penalty tube
kernel: for nonlinear regression
gamma: for RBF/poly/sigmoid kernels

6) Why feature scaling matters a lot

SVM is very sensitive to feature scales.

Example:

age ranges from 18 to 60
salary ranges from 1,000 to 100,000

Without scaling, salary may dominate the geometry of the model.

That is why standardization is strongly recommended. StandardScaler standardizes features by removing the mean and scaling to unit variance. In scikit-learn, a Pipeline is the recommended way to chain preprocessing and the final estimator so training and prediction use the exact same transformations.

Part I — First Classification Example

7) Install required libraries

pip install numpy pandas matplotlib scikit-learn

8) A simple linear SVM classification example

We will use the Breast Cancer dataset from scikit-learn.

import numpy as np
import pandas as pd

from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC
from sklearn.metrics import accuracy_score, classification_report, confusion_matrix

# Load dataset
data = load_breast_cancer()
X = data.data
y = data.target

# Split
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y
)

# Pipeline: scaling + linear SVM
model = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="linear", C=1.0))
])

# Train
model.fit(X_train, y_train)

# Predict
y_pred = model.predict(X_test)

# Evaluate
print("Accuracy:", accuracy_score(y_test, y_pred))
print("\nConfusion Matrix:\n", confusion_matrix(y_test, y_pred))
print("\nClassification Report:\n", classification_report(y_test, y_pred))

What this code does

loads the dataset
splits it into train and test sets
scales the features
trains a linear SVM classifier
evaluates the model

Why use a pipeline

Because Pipeline applies preprocessing and prediction in sequence, it prevents mistakes such as fitting the scaler outside the cross-validation loop or forgetting to scale new data before predicting. That is exactly what the scikit-learn pipeline API is for.

9) A nonlinear SVM with RBF kernel

Now let us switch to a nonlinear model.

from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC

rbf_model = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="rbf", C=1.0, gamma="scale"))
])

rbf_model.fit(X_train, y_train)
y_pred_rbf = rbf_model.predict(X_test)

print("RBF Accuracy:", accuracy_score(y_test, y_pred_rbf))
print("\nConfusion Matrix:\n", confusion_matrix(y_test, y_pred_rbf))
print("\nClassification Report:\n", classification_report(y_test, y_pred_rbf))

Why `gamma="scale"`?

That is the modern scikit-learn default for SVC, and it is usually a sensible starting point.

Part II — Visual Example on 2D Data

10) SVM on a synthetic dataset

This is a good way to understand the decision boundary.

import matplotlib.pyplot as plt

from sklearn.datasets import make_moons
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC

# Create nonlinear dataset
X, y = make_moons(n_samples=300, noise=0.2, random_state=42)

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42
)

model = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="rbf", C=1.0, gamma="scale"))
])

model.fit(X_train, y_train)

print("Accuracy:", model.score(X_test, y_test))

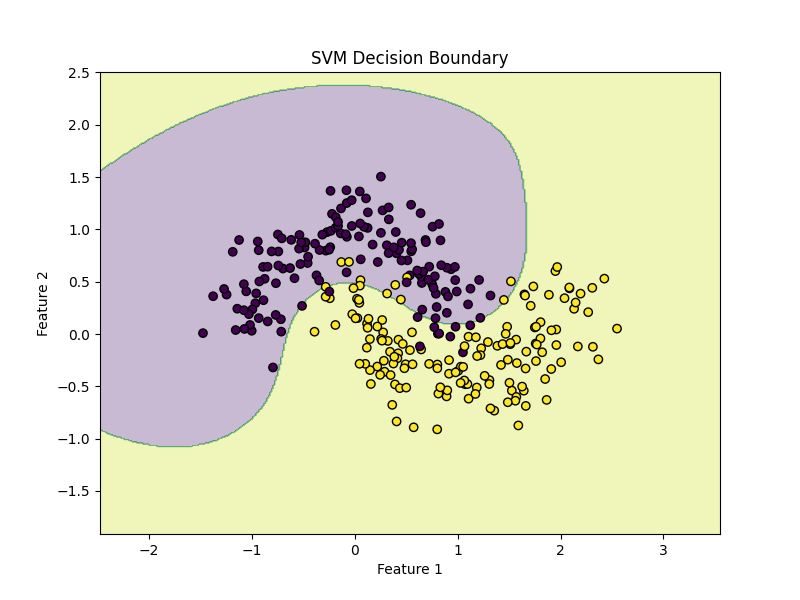

Plot the decision boundary

import numpy as np
import matplotlib.pyplot as plt

def plot_decision_boundary(model, X, y):
    x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
    y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1

    xx, yy = np.meshgrid(
        np.linspace(x_min, x_max, 400),
        np.linspace(y_min, y_max, 400)
    )

    Z = model.predict(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)

    plt.figure(figsize=(8, 6))
    plt.contourf(xx, yy, Z, alpha=0.3)
    plt.scatter(X[:, 0], X[:, 1], c=y, edgecolors="k")
    plt.title("SVM Decision Boundary")
    plt.xlabel("Feature 1")
    plt.ylabel("Feature 2")
    plt.show()

plot_decision_boundary(model, X, y)

This plot helps you see how the RBF kernel creates a curved boundary.

Part III — Hyperparameter Tuning

11) The most important SVM parameters

For classification with `SVC`

kernel: linear, rbf, poly, sigmoid
C: regularization strength
gamma: kernel coefficient for nonlinear kernels
degree: for polynomial kernel

For regression with `SVR`

C
epsilon
gamma
kernel

12) Tune SVM with GridSearchCV

Scikit-learn’s GridSearchCV performs an exhaustive search over parameter combinations with cross-validation. The documentation recommends it for hyperparameter tuning when you want a systematic search over a specified grid.

from sklearn.model_selection import GridSearchCV

pipeline = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC())
])

param_grid = {
    "svm__kernel": ["linear", "rbf"],
    "svm__C": [0.1, 1, 10, 100],
    "svm__gamma": ["scale", 0.01, 0.1, 1]
}

grid = GridSearchCV(
    estimator=pipeline,
    param_grid=param_grid,
    cv=5,
    scoring="accuracy",
    n_jobs=-1
)

grid.fit(X_train, y_train)

print("Best Parameters:", grid.best_params_)
print("Best CV Score:", grid.best_score_)

best_model = grid.best_estimator_
test_score = best_model.score(X_test, y_test)
print("Test Accuracy:", test_score)

Important note

If kernel="linear", gamma is irrelevant.
Still, it is common in simple tutorials to keep one shared grid. In a production project, you may separate the parameter grid by kernel type.

Example:

param_grid = [
    {
        "svm__kernel": ["linear"],
        "svm__C": [0.1, 1, 10, 100]
    },
    {
        "svm__kernel": ["rbf"],
        "svm__C": [0.1, 1, 10, 100],
        "svm__gamma": ["scale", 0.01, 0.1, 1]
    }
]

This is cleaner.

13) Faster search with RandomizedSearchCV

If the search space is large, RandomizedSearchCV can be more efficient because it samples a fixed number of parameter settings rather than testing all combinations. Scikit-learn documents it as the sampling-based alternative to GridSearchCV.

from sklearn.model_selection import RandomizedSearchCV
from scipy.stats import loguniform

pipeline = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="rbf"))
])

param_dist = {
    "svm__C": loguniform(1e-2, 1e2),
    "svm__gamma": loguniform(1e-3, 1e1)
}

random_search = RandomizedSearchCV(
    pipeline,
    param_distributions=param_dist,
    n_iter=20,
    cv=5,
    scoring="accuracy",
    n_jobs=-1,
    random_state=42
)

random_search.fit(X_train, y_train)

print("Best Parameters:", random_search.best_params_)
print("Best CV Score:", random_search.best_score_)
print("Test Accuracy:", random_search.best_estimator_.score(X_test, y_test))

Part IV — Understanding `SVC` vs `LinearSVC`

14) What is the difference?

Scikit-learn documents that:

SVC(kernel="linear") uses libsvm
LinearSVC uses liblinear
LinearSVC generally scales better to large datasets
there are differences in optimization details and defaults between them

Rule of thumb

Use:

SVC(kernel="linear") for small/medium datasets when you want the classic SVM formulation
LinearSVC for larger linear problems
SVC(kernel="rbf") when the boundary is nonlinear

Example with `LinearSVC`

from sklearn.svm import LinearSVC

linear_svc_model = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", LinearSVC(C=1.0, max_iter=10000))
])

linear_svc_model.fit(X_train, y_train)
y_pred = linear_svc_model.predict(X_test)

print("Accuracy:", accuracy_score(y_test, y_pred))
print("\nClassification Report:\n", classification_report(y_test, y_pred))

Part V — SVM Regression with Python

15) Example with `SVR`

Let us create a synthetic regression problem.

import numpy as np
import matplotlib.pyplot as plt

from sklearn.svm import SVR
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split
from sklearn.metrics import mean_squared_error, r2_score

# Synthetic data
rng = np.random.RandomState(42)
X = np.sort(5 * rng.rand(200, 1), axis=0)
y = np.sin(X).ravel()

# Add noise
y[::5] += 0.5 - rng.rand(40)

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42
)

model = Pipeline([
    ("scaler", StandardScaler()),
    ("svr", SVR(kernel="rbf", C=10, epsilon=0.1, gamma="scale"))
])

model.fit(X_train, y_train)
y_pred = model.predict(X_test)

print("MSE:", mean_squared_error(y_test, y_pred))
print("R²:", r2_score(y_test, y_pred))

Plot predictions

X_plot = np.linspace(X.min(), X.max(), 500).reshape(-1, 1)
y_plot = model.predict(X_plot)

plt.figure(figsize=(8, 6))
plt.scatter(X, y, label="Data")
plt.plot(X_plot, y_plot, linewidth=2, label="SVR prediction")
plt.xlabel("X")
plt.ylabel("y")
plt.title("Support Vector Regression")
plt.legend()
plt.show()

16) Example with `LinearSVR`

If the relationship is approximately linear and the dataset is large, LinearSVR can be faster. Scikit-learn distinguishes it from SVR in the same way LinearSVC differs from SVC: better scalability for linear settings.

from sklearn.svm import LinearSVR

linear_svr_model = Pipeline([
    ("scaler", StandardScaler()),
    ("svr", LinearSVR(C=1.0, epsilon=0.1, max_iter=10000))
])

linear_svr_model.fit(X_train, y_train)
y_pred = linear_svr_model.predict(X_test)

print("MSE:", mean_squared_error(y_test, y_pred))
print("R²:", r2_score(y_test, y_pred))

Part VI — A Full Real Workflow

17) End-to-end classification workflow

This is the workflow you should use in real projects.

Step 1: Load data

import pandas as pd

df = pd.read_csv("your_data.csv")

Step 2: Separate features and target

X = df.drop("target", axis=1)
y = df["target"]

Step 3: Split data

from sklearn.model_selection import train_test_split

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y
)

Step 4: Build pipeline

from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC

pipeline = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC())
])

Step 5: Tune parameters

from sklearn.model_selection import GridSearchCV

param_grid = [
    {
        "svm__kernel": ["linear"],
        "svm__C": [0.1, 1, 10]
    },
    {
        "svm__kernel": ["rbf"],
        "svm__C": [0.1, 1, 10],
        "svm__gamma": ["scale", 0.01, 0.1, 1]
    }
]

grid = GridSearchCV(
    pipeline,
    param_grid=param_grid,
    cv=5,
    scoring="accuracy",
    n_jobs=-1
)

grid.fit(X_train, y_train)

Step 6: Evaluate

from sklearn.metrics import classification_report, confusion_matrix, accuracy_score

best_model = grid.best_estimator_
y_pred = best_model.predict(X_test)

print("Best Params:", grid.best_params_)
print("Accuracy:", accuracy_score(y_test, y_pred))
print(confusion_matrix(y_test, y_pred))
print(classification_report(y_test, y_pred))

Step 7: Predict on new samples

new_samples = X_test.iloc[:5]
predictions = best_model.predict(new_samples)
print(predictions)

Part VII — SVM with Text Data

18) SVM is excellent for text classification

SVM, especially linear SVM, is a classic strong method for text classification because text data often has very high dimensional sparse features. Scikit-learn’s text tutorial shows the standard pattern of turning text into feature vectors and then training a classifier in a pipeline.

Example:

from sklearn.pipeline import Pipeline
from sklearn.feature_extraction.text import TfidfVectorizer
from sklearn.svm import LinearSVC
from sklearn.model_selection import train_test_split
from sklearn.metrics import classification_report

texts = [
    "I love this product",
    "This is amazing",
    "Very bad quality",
    "I hate it",
    "Excellent and wonderful",
    "Terrible experience"
]

labels = [1, 1, 0, 0, 1, 0]  # 1 = positive, 0 = negative

X_train, X_test, y_train, y_test = train_test_split(
    texts, labels, test_size=0.3, random_state=42
)

text_model = Pipeline([
    ("tfidf", TfidfVectorizer()),
    ("clf", LinearSVC())
])

text_model.fit(X_train, y_train)
y_pred = text_model.predict(X_test)

print(classification_report(y_test, y_pred))

This is a simple sentiment classification example.

Part VIII — How to Read the Results

19) Classification metrics

For classification, common metrics are:

accuracy
precision
recall
F1-score
confusion matrix

Use accuracy when classes are balanced.
If classes are imbalanced, pay more attention to precision, recall, and F1.

Example:

from sklearn.metrics import confusion_matrix, classification_report

print(confusion_matrix(y_test, y_pred))
print(classification_report(y_test, y_pred))

20) Regression metrics

For regression, common metrics are:

MAE
MSE
RMSE
R²

Example:

from sklearn.metrics import mean_absolute_error, mean_squared_error, r2_score
import numpy as np

mae = mean_absolute_error(y_test, y_pred)
mse = mean_squared_error(y_test, y_pred)
rmse = np.sqrt(mse)
r2 = r2_score(y_test, y_pred)

print("MAE:", mae)
print("MSE:", mse)
print("RMSE:", rmse)
print("R²:", r2)

Part IX — Common Mistakes

21) Not scaling the data

This is one of the biggest mistakes with SVM.

Bad:

model = SVC(kernel="rbf")
model.fit(X_train, y_train)

Better:

model = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="rbf"))
])

Because SVM geometry depends strongly on feature magnitudes, scaling is usually essential. StandardScaler and Pipeline are the documented scikit-learn tools for this workflow.

22) Tuning on the test set

Do not choose C and gamma by repeatedly checking the test set.

Correct process:

split into train/test
use cross-validation on training data
evaluate once on test data

That is exactly the purpose of GridSearchCV and related model selection tools.

23) Using `SVC` on a huge dataset

If your dataset is very large:

SVC can become slow
prefer LinearSVC for linear tasks
consider approximate methods for nonlinear tasks

Scikit-learn explicitly warns that SVC fit time scales at least quadratically with sample count.

24) Overfitting with large `C` and large `gamma`

Typical pattern:

large C
large gamma

This may create a model that memorizes training data and generalizes poorly.

Symptoms:

training accuracy very high
validation/test accuracy lower

Fix:

lower C
lower gamma
use cross-validation
simplify the model

Part X — Practical Advice

25) Which SVM should you choose?

Use `LinearSVC` when:

your data is large
the relationship is roughly linear
especially for text data

Use `SVC(kernel="rbf")` when:

your data is small or medium-sized
you suspect nonlinear patterns
you are okay with slower training

Use `SVR` when:

you want nonlinear regression

Use `LinearSVR` when:

you want scalable linear regression with SVM-style loss

These choices align with the distinctions scikit-learn draws between libsvm-based SVC/SVR and liblinear-based LinearSVC/LinearSVR.

26) A good default starting point

For classification:

Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="rbf", C=1.0, gamma="scale"))
])

For large linear classification:

Pipeline([
    ("scaler", StandardScaler()),
    ("svm", LinearSVC(C=1.0, max_iter=10000))
])

For regression:

Pipeline([
    ("scaler", StandardScaler()),
    ("svr", SVR(kernel="rbf", C=10, epsilon=0.1, gamma="scale"))
])

Part XI — Mini Project Example

27) Predicting cancer diagnosis with SVM

Here is a compact but realistic project.

from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import train_test_split, GridSearchCV
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC
from sklearn.metrics import classification_report, confusion_matrix, accuracy_score

# Load
data = load_breast_cancer()
X, y = data.data, data.target

# Split
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, stratify=y, random_state=42
)

# Pipeline
pipeline = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC())
])

# Search space
param_grid = [
    {
        "svm__kernel": ["linear"],
        "svm__C": [0.1, 1, 10]
    },
    {
        "svm__kernel": ["rbf"],
        "svm__C": [0.1, 1, 10],
        "svm__gamma": ["scale", 0.01, 0.1, 1]
    }
]

# Grid search
grid = GridSearchCV(
    pipeline,
    param_grid=param_grid,
    cv=5,
    scoring="accuracy",
    n_jobs=-1
)

grid.fit(X_train, y_train)

# Evaluate
best_model = grid.best_estimator_
y_pred = best_model.predict(X_test)

print("Best Parameters:", grid.best_params_)
print("Accuracy:", accuracy_score(y_test, y_pred))
print("\nConfusion Matrix:\n", confusion_matrix(y_test, y_pred))
print("\nClassification Report:\n", classification_report(y_test, y_pred))

What makes this project good

uses a train/test split
uses scaling correctly
uses pipeline correctly
tunes hyperparameters with cross-validation
evaluates only once on the test set

Part XII — Summary

28) What you should remember

SVM is one of the most important classical machine learning algorithms.

The core ideas are:

find a separating boundary
maximize the margin
rely on support vectors
use kernels for nonlinear patterns

In Python with scikit-learn, the most important tools are:

SVC
LinearSVC
SVR
LinearSVR
StandardScaler
Pipeline
GridSearchCV

And the practical rules are:

always scale features
start with linear or RBF
tune C and gamma
use cross-validation
prefer LinearSVC for large linear problems
prefer SVC with RBF for nonlinear medium-sized problems

These recommendations match the current scikit-learn documentation on SVMs, preprocessing, pipelines, and hyperparameter tuning.

29) Final ready-to-use template

from sklearn.model_selection import train_test_split, GridSearchCV
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC
from sklearn.metrics import classification_report

# X, y = your data

X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42
)

pipeline = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC())
])

param_grid = [
    {
        "svm__kernel": ["linear"],
        "svm__C": [0.1, 1, 10]
    },
    {
        "svm__kernel": ["rbf"],
        "svm__C": [0.1, 1, 10],
        "svm__gamma": ["scale", 0.01, 0.1]
    }
]

grid = GridSearchCV(
    pipeline,
    param_grid=param_grid,
    cv=5,
    scoring="accuracy",
    n_jobs=-1
)

grid.fit(X_train, y_train)

print("Best params:", grid.best_params_)
print("Test score:", grid.best_estimator_.score(X_test, y_test))

y_pred = grid.best_estimator_.predict(X_test)
print(classification_report(y_test, y_pred))

30) Practice exercises

Exercise 1

Train a linear SVM on the Iris dataset and report accuracy.

from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC
from sklearn.metrics import accuracy_score, classification_report, confusion_matrix

# Load Iris dataset
iris = load_iris()
X = iris.data
y = iris.target

# Split data
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y
)

# Build pipeline: scaling + linear SVM
model = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="linear", C=1.0))
])

# Train
model.fit(X_train, y_train)

# Predict
y_pred = model.predict(X_test)

# Evaluate
acc = accuracy_score(y_test, y_pred)

print("Accuracy:", acc)
print("\nConfusion Matrix:\n", confusion_matrix(y_test, y_pred))
print("\nClassification Report:\n", classification_report(y_test, y_pred))

Explanation

load_iris() loads the Iris dataset
train_test_split() splits the data into training and testing sets
StandardScaler() scales the features
SVC(kernel="linear") creates a linear SVM classifier
accuracy_score() measures how many predictions are correct

Exercise 2

Train an RBF SVM on make_moons and visualize the boundary.

import numpy as np
import matplotlib.pyplot as plt

from sklearn.datasets import make_moons
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC
from sklearn.metrics import accuracy_score

# Create dataset
X, y = make_moons(n_samples=300, noise=0.2, random_state=42)

# Split data
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42
)

# Build model
model = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="rbf", C=1.0, gamma="scale"))
])

# Train
model.fit(X_train, y_train)

# Predict
y_pred = model.predict(X_test)

# Accuracy
print("Accuracy:", accuracy_score(y_test, y_pred))

# Function to plot decision boundary
def plot_decision_boundary(model, X, y):
    x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
    y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1

    xx, yy = np.meshgrid(
        np.linspace(x_min, x_max, 400),
        np.linspace(y_min, y_max, 400)
    )

    Z = model.predict(np.c_[xx.ravel(), yy.ravel()])
    Z = Z.reshape(xx.shape)

    plt.figure(figsize=(8, 6))
    plt.contourf(xx, yy, Z, alpha=0.3)
    plt.scatter(X[:, 0], X[:, 1], c=y, edgecolors="k")
    plt.title("RBF SVM Decision Boundary on make_moons")
    plt.xlabel("Feature 1")
    plt.ylabel("Feature 2")
    plt.show()

# Visualize
plot_decision_boundary(model, X, y)

Explanation

make_moons() creates a nonlinear dataset
SVC(kernel="rbf") uses the RBF kernel
the decision boundary plot shows how the SVM separates the two moon shapes

Exercise 3

Tune C and gamma using GridSearchCV.

from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split, GridSearchCV
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC
from sklearn.metrics import accuracy_score

# Load data
iris = load_iris()
X = iris.data
y = iris.target

# Split data
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y
)

# Pipeline
pipeline = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="rbf"))
])

# Parameter grid
param_grid = {
    "svm__C": [0.1, 1, 10, 100],
    "svm__gamma": [0.001, 0.01, 0.1, 1, "scale"]
}

# Grid search
grid = GridSearchCV(
    estimator=pipeline,
    param_grid=param_grid,
    cv=5,
    scoring="accuracy",
    n_jobs=-1
)

# Train grid search
grid.fit(X_train, y_train)

# Best model
best_model = grid.best_estimator_

# Predict
y_pred = best_model.predict(X_test)

# Results
print("Best Parameters:", grid.best_params_)
print("Best Cross-Validation Score:", grid.best_score_)
print("Test Accuracy:", accuracy_score(y_test, y_pred))

Explanation

GridSearchCV tries all parameter combinations
C controls regularization
gamma controls how flexible the RBF decision boundary is
grid.best_params_ gives the best values found

Exercise 4

Compare SVC(kernel="linear") with LinearSVC.

from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVC, LinearSVC
from sklearn.metrics import accuracy_score

# Load data
iris = load_iris()
X = iris.data
y = iris.target

# Split
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42, stratify=y
)

# Model 1: SVC with linear kernel
model_svc = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", SVC(kernel="linear", C=1.0))
])

# Model 2: LinearSVC
model_linear_svc = Pipeline([
    ("scaler", StandardScaler()),
    ("svm", LinearSVC(C=1.0, max_iter=10000))
])

# Train both
model_svc.fit(X_train, y_train)
model_linear_svc.fit(X_train, y_train)

# Predict
y_pred_svc = model_svc.predict(X_test)
y_pred_linear_svc = model_linear_svc.predict(X_test)

# Accuracy
acc_svc = accuracy_score(y_test, y_pred_svc)
acc_linear_svc = accuracy_score(y_test, y_pred_linear_svc)

print("Accuracy of SVC(kernel='linear'):", acc_svc)
print("Accuracy of LinearSVC:", acc_linear_svc)

Explanation

`SVC(kernel="linear")`

uses the SVM formulation from libsvm
good for small and medium datasets

`LinearSVC`

optimized for linear classification
faster on larger datasets

Main goal of this exercise

To see whether both models give similar performance on the same dataset.

Exercise 5

Train an SVR model on a synthetic nonlinear regression dataset.

import numpy as np
import matplotlib.pyplot as plt

from sklearn.model_selection import train_test_split
from sklearn.pipeline import Pipeline
from sklearn.preprocessing import StandardScaler
from sklearn.svm import SVR
from sklearn.metrics import mean_squared_error, r2_score

# Create synthetic nonlinear data
rng = np.random.RandomState(42)
X = np.sort(5 * rng.rand(200, 1), axis=0)
y = np.sin(X).ravel()

# Add noise
y[::5] += 0.5 - rng.rand(40)

# Split
X_train, X_test, y_train, y_test = train_test_split(
    X, y, test_size=0.2, random_state=42
)

# Build SVR model
model = Pipeline([
    ("scaler", StandardScaler()),
    ("svr", SVR(kernel="rbf", C=10, epsilon=0.1, gamma="scale"))
])

# Train
model.fit(X_train, y_train)

# Predict
y_pred = model.predict(X_test)

# Evaluate
mse = mean_squared_error(y_test, y_pred)
r2 = r2_score(y_test, y_pred)

print("Mean Squared Error:", mse)
print("R² Score:", r2)

# Plot prediction curve
X_plot = np.linspace(X.min(), X.max(), 500).reshape(-1, 1)
y_plot = model.predict(X_plot)

plt.figure(figsize=(8, 6))
plt.scatter(X, y, label="Data")
plt.plot(X_plot, y_plot, linewidth=2, label="SVR prediction")
plt.xlabel("X")
plt.ylabel("y")
plt.title("SVR on Nonlinear Regression Data")
plt.legend()
plt.show()

Explanation

SVR is the regression version of SVM
kernel="rbf" allows the model to learn nonlinear patterns
epsilon defines a tolerance zone around the regression line
mean_squared_error and R² evaluate regression performance

Final summary

What each exercise teaches

Exercise 1: basic linear SVM classification
Exercise 2: nonlinear classification with RBF kernel
Exercise 3: hyperparameter tuning with grid search
Exercise 4: comparison between SVC and LinearSVC
Exercise 5: nonlinear regression with SVR

0) Introduction

1) What an SVM does

2) Why SVM is powerful

3) Linear SVM intuition

Hard margin vs soft margin

Hard margin

Soft margin

4) Nonlinear SVM and the kernel trick

RBF kernel

5) SVM for regression

6) Why feature scaling matters a lot

Part I — First Classification Example

7) Install required libraries

8) A simple linear SVM classification example

What this code does

Why use a pipeline

9) A nonlinear SVM with RBF kernel

Why gamma="scale"?

Part II — Visual Example on 2D Data

10) SVM on a synthetic dataset

Plot the decision boundary

Part III — Hyperparameter Tuning

11) The most important SVM parameters

For classification with SVC

For regression with SVR

12) Tune SVM with GridSearchCV

Important note

13) Faster search with RandomizedSearchCV

Part IV — Understanding SVC vs LinearSVC

14) What is the difference?

Rule of thumb

Example with LinearSVC

Part V — SVM Regression with Python

15) Example with SVR

16) Example with LinearSVR

Part VI — A Full Real Workflow

17) End-to-end classification workflow

Step 1: Load data

Step 2: Separate features and target

Step 3: Split data

Step 4: Build pipeline

Step 5: Tune parameters

Step 6: Evaluate

Step 7: Predict on new samples

Part VII — SVM with Text Data

18) SVM is excellent for text classification

Part VIII — How to Read the Results

19) Classification metrics

20) Regression metrics

Part IX — Common Mistakes

21) Not scaling the data

22) Tuning on the test set

23) Using SVC on a huge dataset

24) Overfitting with large C and large gamma

Part X — Practical Advice

25) Which SVM should you choose?

Use LinearSVC when:

Use SVC(kernel="rbf") when:

Use SVR when:

Use LinearSVR when:

26) A good default starting point

Part XI — Mini Project Example

27) Predicting cancer diagnosis with SVM

What makes this project good

Part XII — Summary

28) What you should remember

29) Final ready-to-use template

30) Practice exercises

Exercise 1

Explanation

Exercise 2

Explanation

Exercise 3

Explanation

Exercise 4

Explanation

SVC(kernel="linear")

LinearSVC

Main goal of this exercise

Exercise 5

Why `gamma="scale"`?

For classification with `SVC`

For regression with `SVR`

Part IV — Understanding `SVC` vs `LinearSVC`

Example with `LinearSVC`

15) Example with `SVR`

16) Example with `LinearSVR`

23) Using `SVC` on a huge dataset

24) Overfitting with large `C` and large `gamma`

Use `LinearSVC` when:

Use `SVC(kernel="rbf")` when:

Use `SVR` when:

Use `LinearSVR` when:

`SVC(kernel="linear")`

`LinearSVC`
